BMS-A53M, HV-Digital, High Torque, High Speed, Coreless
RC Sailplane Fuselage Servo
|
Electrical Specification (Function Of The Performance)
|
|
| Torque At 4.8V | 5.2 kg-cm / 72 oz-in |
| Torque At 6.0V | 6.2 kg-cm / 86 oz-in |
| Torque At 7.4V | 7.4 kg-cm / 103 oz-in |
| Speed At 4.8V | 0.12 sec / 60° |
| Speed At 6.0V | 0.10 sec / 60° |
| Speed At 7.4V | 0.08 sec / 60° |
| Idle Current | 3 mAh @ 4.8~7.4V Stopped |
|
Apply Environmental Condition
|
|
| Operating Voltage Range | 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly ) |
| Operating Temperature Range | -20°C ~ 60°C ( -4°F ~ 140°F ) |
|
Control Specification
|
|
| Control System | Digital Controller / 12-Bits ( 4096 Steps ) |
| Dead Bend Width | 0.001ms (1us) |
|
Mechanical Specification
|
|
| Ball Bearing | Dual |
| Type Gears | All Metal Gears |
| Motor Type | Coreless Motor |
| Horn / Gear Spline | 25 Teeth (Same as F-Type) |
|
Outline Drawing
|
|
| Dimension (mm) | 30 x 10 x 29.6 mm / 1.18 x 0.39 x 1.16 in |
| Weight (gram) | 24 ± 1 grams / 0.85 oz |
|

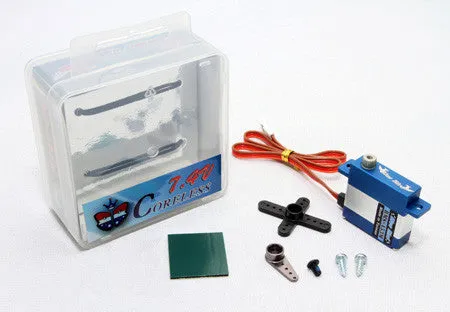

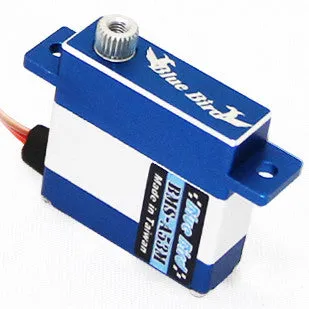

Product Picture / |
BMS-A53M
|
